Category: C Channel Dimensions
-
C380x100x13x16.5
C380x100x13x16.5 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 380x100x13x16.5 Depth : 380 mm Width : 100 mm Web Thickness : 13 mm Flange Thickness : 16.5 mm Root Fillet Radius : 18 mm Toe Radius…
-

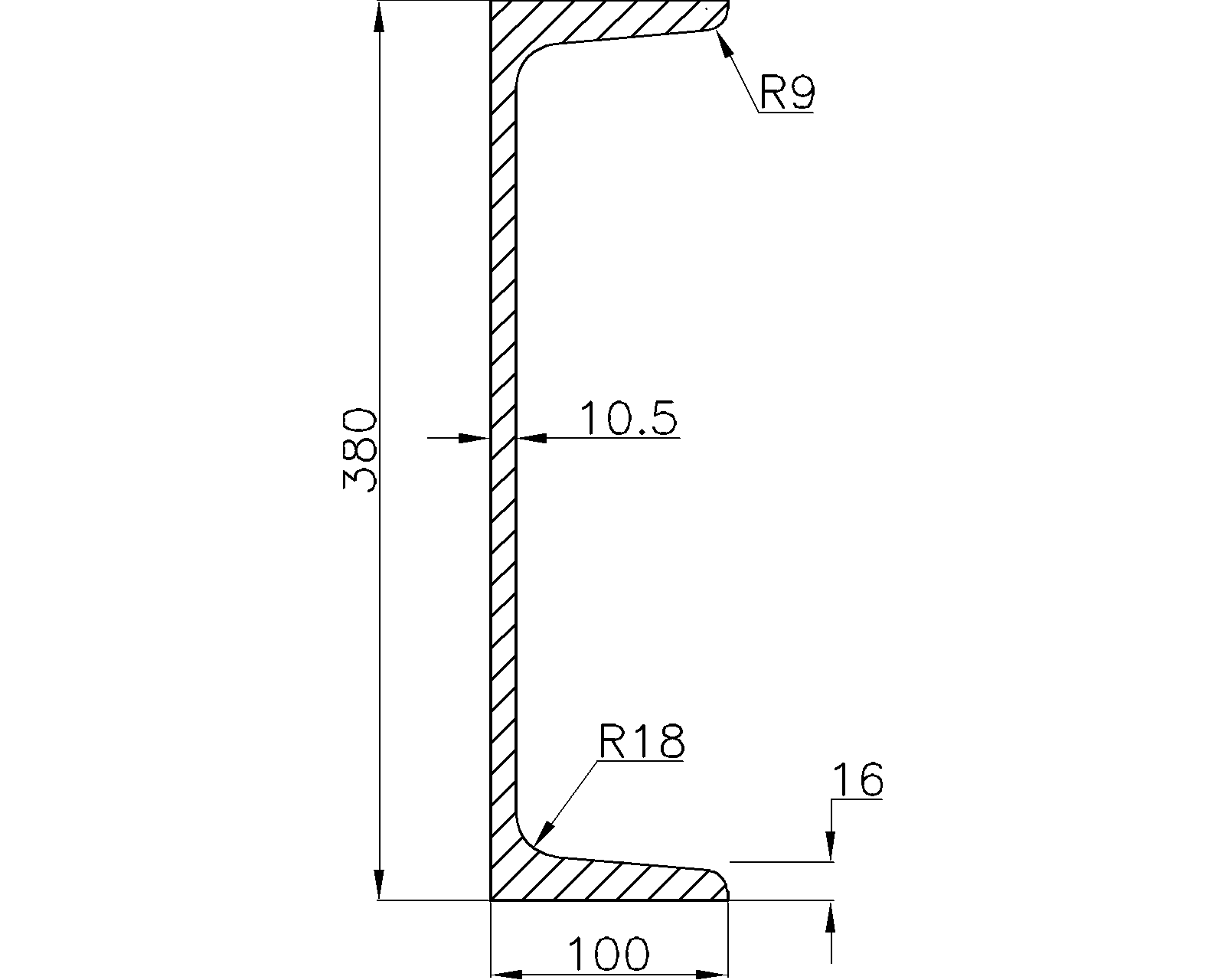

C380x100x10.5×16
C380x100x10.5×16 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 380x100x10.5×16 Depth : 380 mm Width : 100 mm Web Thickness : 10.5 mm Flange Thickness : 16 mm Root Fillet Radius : 18 mm Toe Radius…
-
C300x90x10x15.5
C300x90x10x15.5 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 300x90x10x15.5 Depth : 300 mm Width : 90 mm Web Thickness : 10 mm Flange Thickness : 15.5 mm Root Fillet Radius : 19 mm Toe Radius…
-

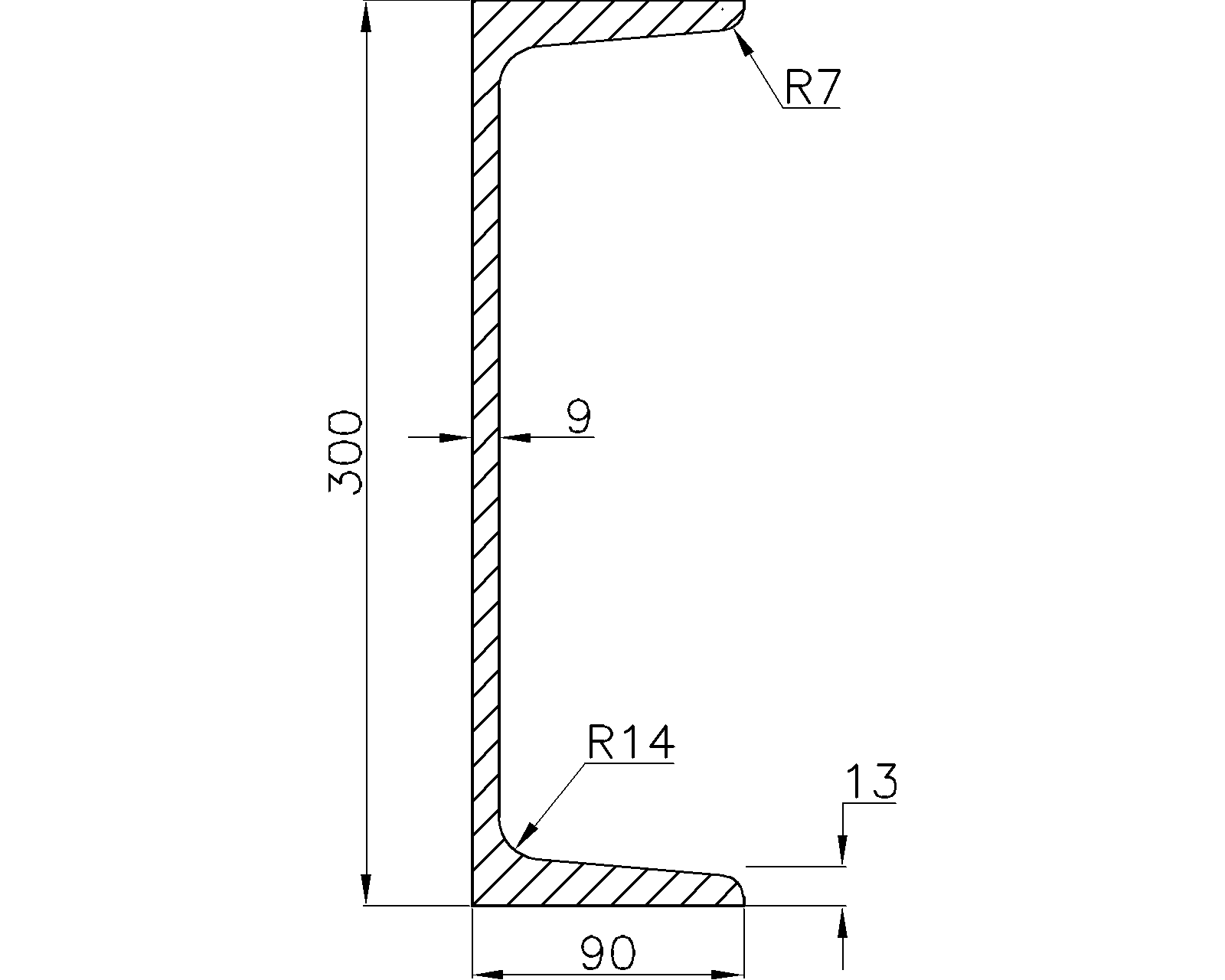

C300x90x9x13
C300x90x9x13 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 300x90x9x13 Depth : 300 mm Width : 90 mm Web Thickness : 9 mm Flange Thickness : 13 mm Root Fillet Radius : 14 mm Toe Radius…
-
C280x100x11.5×16
C280x100x11.5×16 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 280x100x11.5×16 Depth : 280 mm Width : 100 mm Web Thickness : 11.5 mm Flange Thickness : 16 mm Root Fillet Radius : 18 mm Toe Radius…
-
C280x100x9x13
C280x100x9x13 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 280x100x9x13 Depth : 280 mm Width : 100 mm Web Thickness : 9 mm Flange Thickness : 13 mm Root Fillet Radius : 14 mm Toe Radius…
-
C250x90x11x14.5
C250x90x11x14.5 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 250x90x11x14.5 Depth : 250 mm Width : 90 mm Web Thickness : 11 mm Flange Thickness : 14.5 mm Root Fillet Radius : 17 mm Toe Radius…
-
C250x90x9x13
C250x90x9x13 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 250x90x9x13 Depth : 250 mm Width : 90 mm Web Thickness : 9 mm Flange Thickness : 13 mm Root Fillet Radius : 14 mm Toe Radius…
-
C250x80x8x12.5
C250x80x8x12.5 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 250x80x8x12.5 Depth : 250 mm Width : 80 mm Web Thickness : 8 mm Flange Thickness : 12.5 mm Root Fillet Radius : 14 mm Toe Radius…
-
C230x90x8.5×13.5
C230x90x8.5×13.5 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 230x90x8.5×13.5 Depth : 230 mm Width : 90 mm Web Thickness : 8.5 mm Flange Thickness : 13.5 mm Root Fillet Radius : 15 mm Toe Radius…
-
C230x80x8x12
C230x80x8x12 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 230x80x8x12 Depth : 230 mm Width : 80 mm Web Thickness : 8 mm Flange Thickness : 12 mm Root Fillet Radius : 13 mm Toe Radius…
-
C200x90x8x13.5
C200x90x8x13.5 C-Section with Tapered Flange Surfaces refer to : JIS G 3192 Dimensions, Shape, Mass, and Permissible Variations of Hot Rolled Steel Sections with CAD File. Dimension : 200x90x8x13.5 Depth : 200 mm Width : 90 mm Web Thickness : 8 mm Flange Thickness : 13.5 mm Root Fillet Radius : 14 mm Toe Radius…
