Dry Chemical Fire Extinguisher CAD | Free DWG Blocks

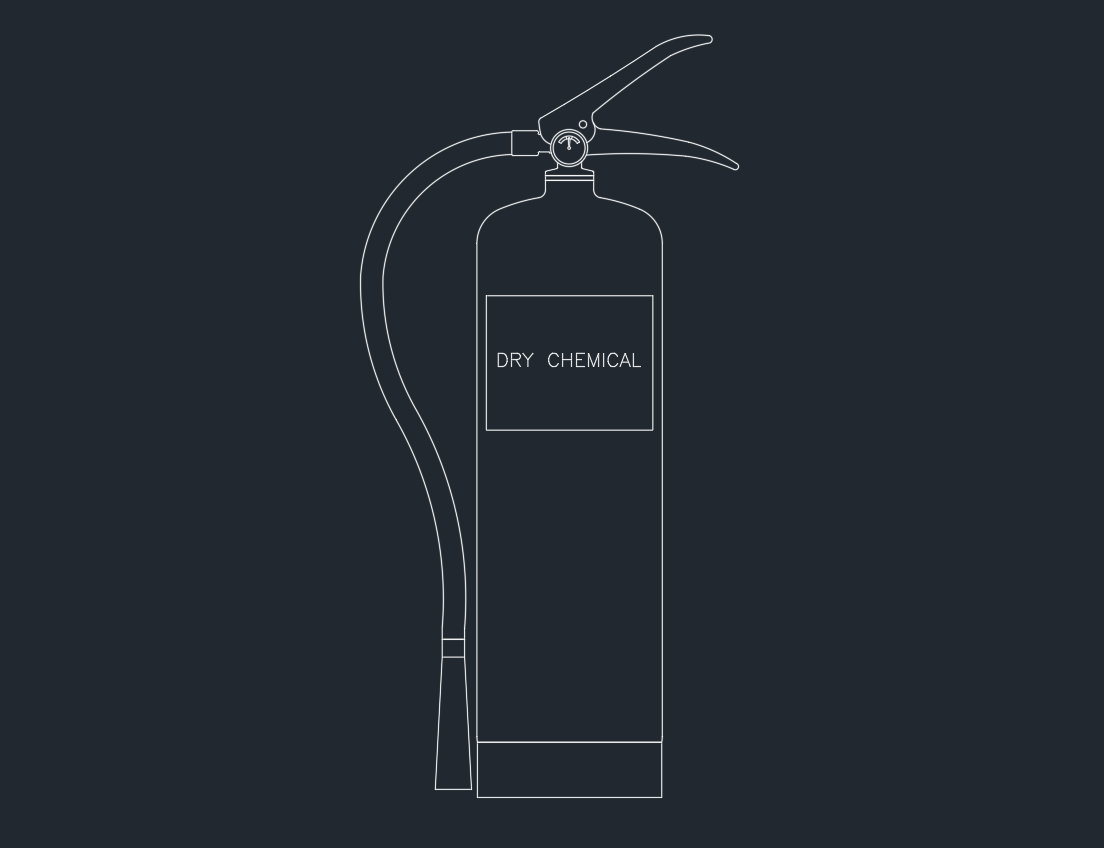

Download accurate Dry Chemical Fire Extinguisher CAD Blocks in DWG format—perfect for architects, MEP designers, fire protection engineers, and safety coordinators. This DWG library includes top, front, side, and wall-mounted elevation views of ABC-type fire extinguishers (dry chemical), which are commonly used in commercial buildings, industrial sites, public facilities, schools, and residential complexes. These CAD blocks feature key design elements such as nozzles, pressure gauges, wall brackets, and labeling zones, compliant with common NFPA and local fire safety regulations. Suitable for use in fire safety layouts, evacuation plans, and construction documents, these blocks help you maintain building code compliance and streamline your drafting process. Fully editable and compatible with AutoCAD and other CAD platforms, these DWG files allow for easy integration into fire protection sheets and equipment schedules.
