Mesh Galvanized Fence And Entrance Gate Details

Posted on
Fence And Entrance Gate Details
Fence And Entrance Gate Details

Chain Link Galvanized Fencing
3 Nos 12.5 Gauge Galvanized Steel Wire With 4 Point Round 14 Gauge Barbed Spaced 100mm. Apart
Extend Chain-link Fence With Min. 75mm Gap To Fire Wall
4.0mm Diameter, 50mm Wire Mesh Galvanized
Wire Mesh Attached By Means Of 20 Mm.x40 Mm. Thk. Plate Tack Weld To Frame At 150 Crs (typical)
40x50x10 Mm. Thk. Plate With Hole For Pad Lock
100x30x4mm. Thk. Plate With 50×15 Opening Welded To ∅20 Mm.x250 Long Slide Bar.
120x120x10 Thk. Plate Welded To Base Of Post
300x400x15 Thk. Plate Welded To Bottom Of Posts
Chain Link Fabric 4.0 Mm.x50 Mesh Galvanized

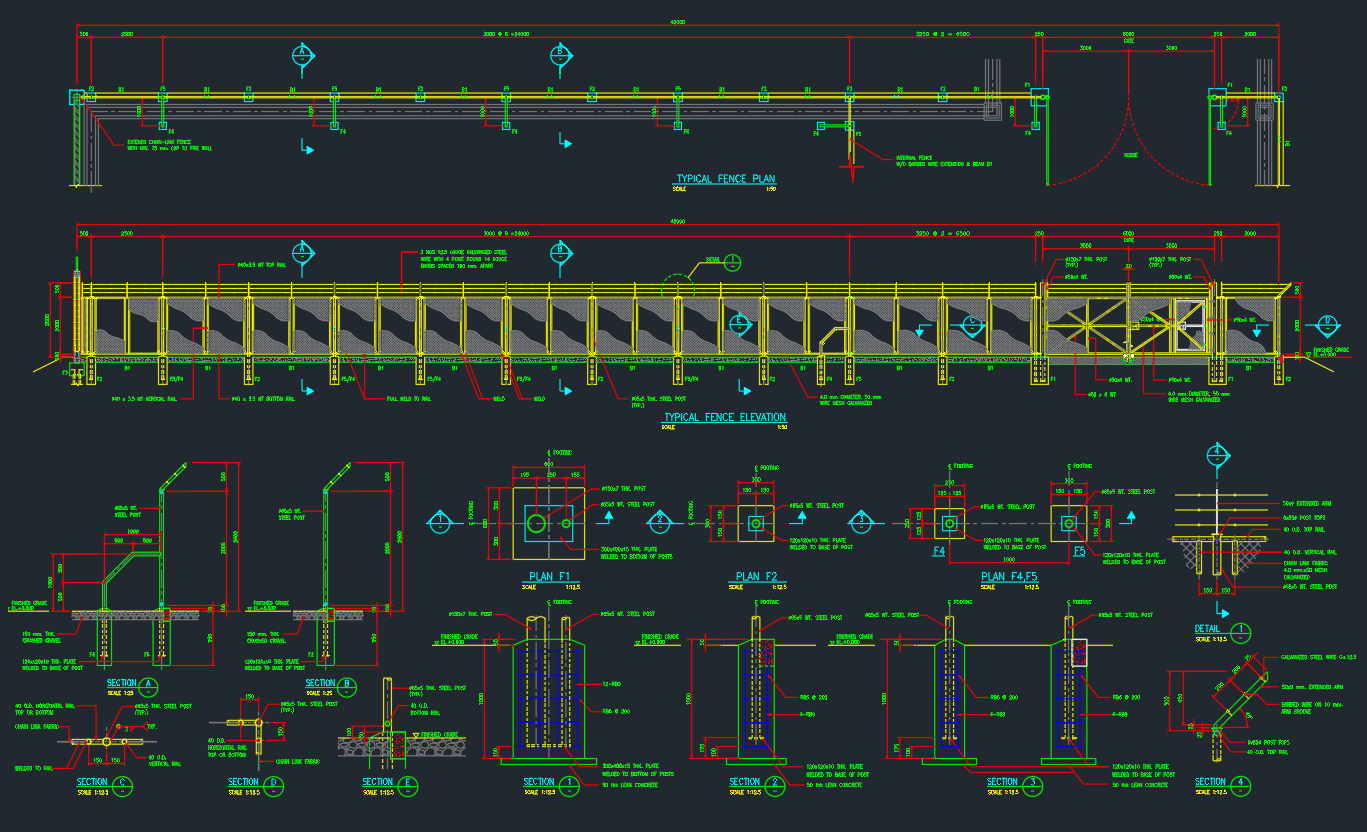

Fence And Entrance Gate Details
