Tag: plumbing CAD block

  • Toilet Fitting

    Toilet Fitting

    A toilet fitting CAD block is a 2D representation of a water closet or toilet fixture designed for CAD software like AutoCAD. These blocks typically include plan, elevation, and side views, making them essential for architects, designers, and engineers to accurately incorporate toilet fittings into bathroom layouts, plumbing plans, and sanitary ware designs.

  • Shower  Enclosure

    Shower Enclosure

    A shower enclosure CAD block is a detailed 2D representation of a shower cabin or cubicle, created for use in CAD software such as AutoCAD. These blocks include plan, elevation, and sectional views, enabling architects and designers to integrate accurate shower enclosure dimensions and layouts into bathroom designs and construction plans.

  • lavatory CAD block

    lavatory CAD block

    A lavatory CAD block is a 2D representation of a bathroom sink or washbasin, designed for use in CAD software like AutoCAD. These blocks typically include plan, elevation views, allowing architects, designers, and engineers to incorporate precise representations of lavatories into restroom layouts, plumbing plans, or interior designs.

  • Lavatory Hot And Clod Water

    Lavatory Hot And Clod Water

    A lavatory with hot and cold water refers to a sink or basin equipped with faucets that provide both hot and cold water options for various hygiene and washing needs. This type of plumbing fixture is commonly found in bathrooms, powder rooms, and other areas where personal grooming activities take place.

  • Lavatory Installation

    Lavatory Installation

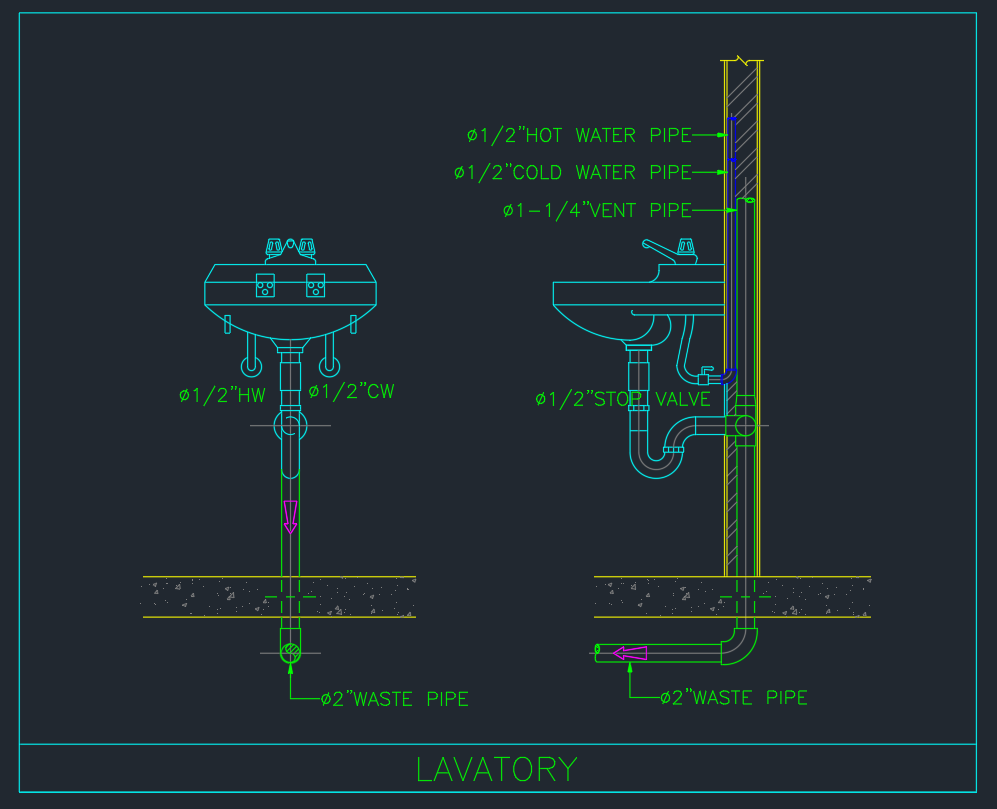

    Lavatory 1-1/4″ Vent Pipe 1/2″ Hot Water Pipe 1/2″ Cold Water Pipe 1/2″ Stop Valve 2″ Waste Pipe
